GQ-4x4 vs XGECU T48 (the modern TL866): A workshop-bench comparison

A sibling post to the Cross-Validation series. The five-programmer rematch in Part 2 had both the GQ-4x4 and the XGECU T48 in the rig—this post is the head-to-head that wasn't the subject of that one.

The GQ-4x4 and the XGECU T48 are two modern USB EPROM programmers from different vendors that cover overlapping but not identical device ranges, and they're the two units most people in retro repair end up choosing between today.

After a year of bench use with both, I have opinions. Not in the "winner takes all" sense—neither one wins outright, and I keep using both. Each one earns its space on the bench for different reasons, and the buying decision depends on which set of reasons matters more to you.

Two quick disclosures: this isn't a sponsored review, I have no affiliate relationship with MCUmall or XGECU, and nobody sent me either unit. Both were bought at retail for actual workshop use. The opinions are what I formed from running them, not from a press release.

An EPROM programmer is a device that reads from and writes to erasable programmable read-only memory chips—the storage type used in vintage computer and arcade hardware before flash memory dominated. Modern USB EPROM programmers connect to a host computer over USB and handle both legacy 27Cxxx EPROMs and newer EEPROM/flash families through interchangeable device profiles. The GQ-4x4 and the T48 are two of the most common options for that work today.

The cast—what each programmer actually is

The GQ-4x4 is a USB-powered EPROM programmer from MCUmall—a Hong Kong–based maker that's been selling the GQ programmer line since the late 2000s. The 4x4 is their flagship: white plastic case, top-mounted 40-pin ZIF socket, USB-B connection, four status LEDs across the front. Mine runs Software Re. 7.38 with USB Driver 3.0, both reported as current by the app at the time of writing. The unit markets itself as a "True USB Universal Programmer," and the universal claim is approximately right—it covers thousands of devices across the 27Cxxx EPROM family, 28Cxxx EEPROM family, common flash parts, and a smattering of microcontrollers and PLDs. The proprietary GQ software is Windows-only and connects to the unit over a USB serial-style interface.

The XGECU T48 is the current-generation USB programmer from XGECU—a mainland-Chinese maker most retro-computing people will recognize as the company behind the TL866 line. The T48 is the successor to the TL866II Plus, and that lineage is worth stating up front: the TL866II Plus was the de facto budget EPROM programmer of the 2010s, the one everyone in arcade restoration and retro repair eventually ended up owning. XGECU stopped manufacturing the TL866II Plus after the T48 launch; the T48 is now their active product. Mine reports firmware version 00.01.35 and connects at 4.99V over a USB 2.0 high-speed link. The XGecu Pro software handles file management, device profile selection, and verify operations across the T48 plus a long device list—tens of thousands of supported parts per XGECU's published spec.

Why this matters for what follows: the comparison most retro-tech buyers actually search for is "GQ-4x4 vs TL866." Since the T48 is the TL866's modern successor and I don't own a TL866II Plus to test directly, the honest version of that comparison is GQ-4x4 vs T48—with the understanding that the T48 is what you'd buy today instead of a TL866. Anything below about the T48's general capabilities applies to the TL866 lineage; anything about the T48's specific firmware revision or current pricing is T48-only.

On overlap: both programmers cover the 27Cxxx EPROM family that's at the center of retro computer and arcade-board work—M27C512, M27C256B, M27C1001, and the dozens of pin-compatible parts from other manufacturers. Both handle the modern flash and EEPROM successors (W27C512, AT28C256, SST 39SFxxx, and so on). The places where they diverge are at the edges of the device list, and that's where the buying decision starts to matter—covered in the device coverage section below.

At a glance

Form factor and build

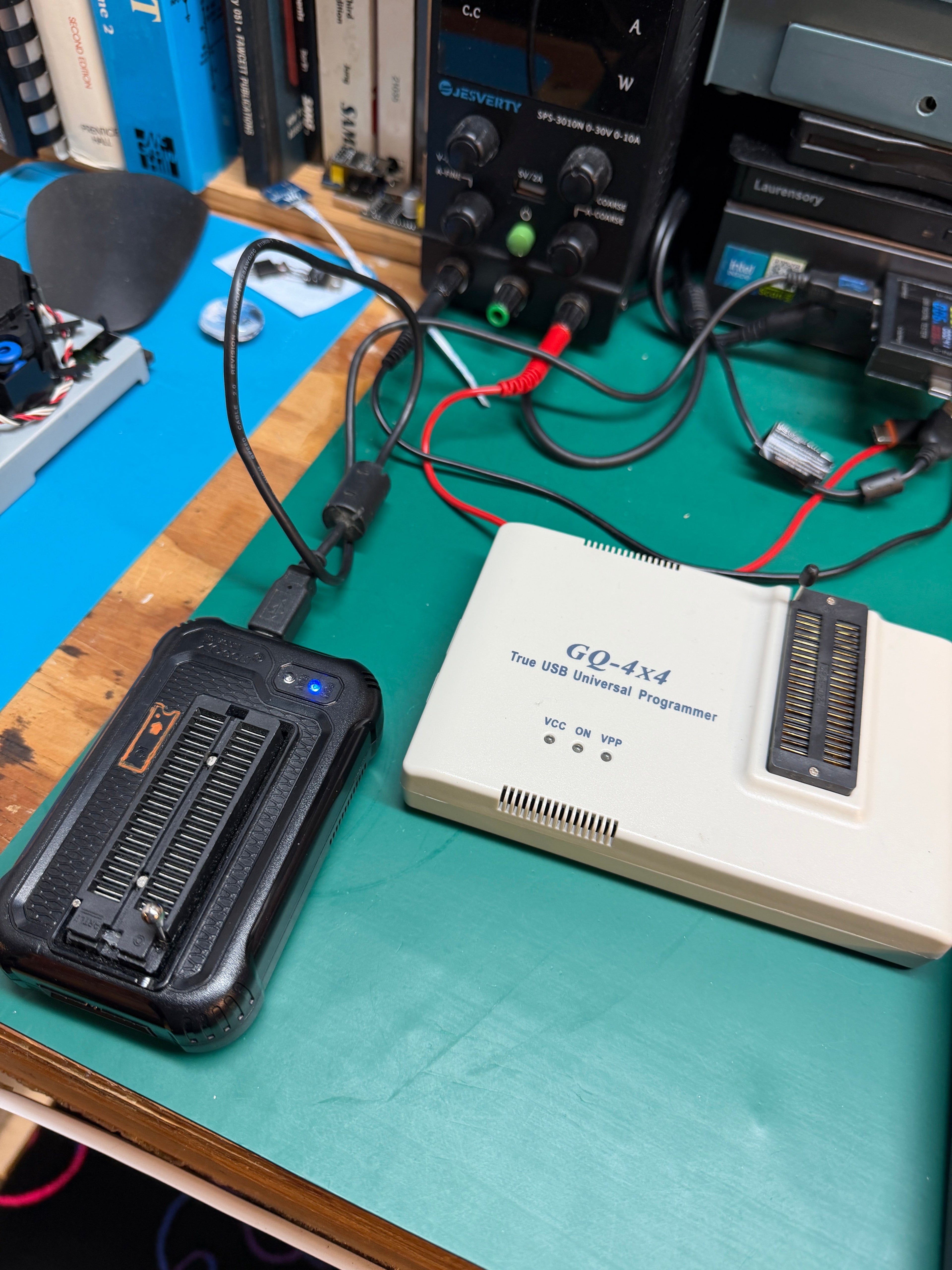

The two programmers feel like products of different decades on the bench. The GQ-4x4 has the industrial-product look of late-2000s lab gear; the T48 is a compact consumer-electronics enclosure with a modern footprint.

The GQ-4x4 is a substantial bench-instrument-style enclosure: textured white plastic, four front-panel LEDs (Power, VCC, VPP, Busy/Status), and a device profile label on the top surface. The 40-pin ZIF socket sits centered on top, lever toward the front, with the standard pin-alignment markings on the socket lid. USB-B port at the back for the host connection. The unit has more heft than its looks suggest—there's real metal shielding inside the plastic—and the ZIF lever has a firm action that doesn't feel like it'll wear out anytime soon.

The T48 is noticeably smaller—a compact glossy-black enclosure with a single status LED and an XGECU logo on top. Same 40-pin ZIF socket, same lever orientation. The footprint is small enough that two T48s fit comfortably in the bench space one GQ-4x4 takes. USB-B port on the back, same as the GQ-4x4—I run both off the same USB-A to USB-B cable, swapping it between units when I switch rigs.

Both units use removable ZIF sockets—the standard pop-out design that can be swapped out if the socket wears from extensive use. Worth noting because ZIF socket wear is a real long-term failure mode for any programmer that gets heavy use: each chip insertion or removal is a small mechanical cycle, and after a few thousand cycles the sockets get less reliable about pin contact. Being able to replace the socket without throwing away the programmer is a real long-term advantage; both units offer it.

On the bench itself, the practical difference is presence. The GQ-4x4 sits like a piece of test equipment—it stays where you put it, doesn't slide when you connect a cable, occupies real estate the way an oscilloscope occupies real estate. The T48 is small enough to put almost anywhere; mine sometimes ends up in a drawer between sessions because it doesn't claim its own permanent spot.

Software—GQ-4x4 app vs XGecu Pro

The two programmers' software is where the generation gap is most visible. Both are Windows-only desktop apps. Both handle the same fundamental jobs: load a source file, select a device profile, burn the chip, verify the result, read back to disk if needed. But the feel of using them is different, and that feel adds up across hundreds of burns.

The GQ-4x4 software is the proprietary MCUmall app—the kind of utility-first Windows program that hasn't changed its general design since the late 2000s. The main window has a menu bar across the top (Edit / View / Device / Command / Test H/W / Setting / Help), a row of icon-based toolbar buttons just below it, and a vertical column of operation labels down the left side: Device, ID, Read, Erase, Blank Check, Write, Verify, Auto Mode. The main pane is tabbed—Message Log on one tab, Buffer view on the other—and a status bar across the bottom shows the current device checksum and Ready state. It works. The visual design is dated, but every function is one click away, the dialogs are clear about what they're asking, and the verify-failed reporting is among the most diagnostic-friendly I've used—when it flags an error, it tells you the exact offset, the byte the chip read back, and the byte the buffer expected, in the format that Part 1's bit-flip analysis leans on heavily. Mine runs Software Re. 7.38 with USB Driver 3.0; the app reports itself as current when checked against MCUmall's server.

XGecu Pro is XGECU's modern app. The UI looks like a current-decade Windows program: a toolbar across the top, tabbed configuration dialogs, and a crowded status pane that logs everything the programmer does in real time. The device list is much larger than the GQ-4x4's—you can search the full XGECU catalog (tens of thousands of supported parts per their published spec) and filter by family. Operations are split across more dialog buttons than the GQ-4x4, which trades simplicity for granular control. The verify dialog reports errors with the same offset/buffer/device clarity. Mine runs firmware 00.01.35.

One software note worth flagging: XGecu Pro routinely shows an "Upgrade is available" prompt at startup. I decline those updates as a standing rule—every prior XGECU firmware or software update I've applied has introduced driver issues that took longer to debug than the update was worth. The GQ-4x4 app doesn't have this problem; its self-update check almost always reports "current," and the firmware doesn't pester. If you value being able to ignore the update treadmill, that's a real GQ-4x4 advantage. If you'd rather have access to the newest part profiles as XGECU adds them, that's a T48 advantage with the caveat that you accept the driver-stability tax.

Both apps export readback buffers as standard binary (.bin) files, which is what the fc /b audit trail from the Cross-Validation series depends on. Both load source files as binary or Intel HEX. Neither has an official Linux or macOS release, but the T48 has experimental community support via the open-source minipro command-line driver—which also covers the entire TL866 lineage (TL866CS / TL866A / TL866II+) and supports over 13,000 devices. The GQ-4x4 is Windows-only officially; users have been asking MCUmall for Linux support for years without movement, and some run the GQ software under Wine with mixed success. If running EPROM work on Linux or macOS is a hard requirement, the T48 + minipro combo is the only realistic path of the two programmers covered here.

Device coverage—what each one does that the other doesn't

The T48 supports about 37,000 devices per XGECU's current published spec; the GQ-4x4 supports several thousand. MCUmall's catalog is less precisely enumerated but is substantially smaller. For 27Cxxx EPROM family work specifically, both cover the relevant parts. The divergence shows up at the edges of the device list—and those edges are where the buying decision starts to matter.

What the T48 does that the GQ-4x4 doesn't:

• In-Circuit Serial Programming (ICSP) interface. The T48 has dedicated header pins for ICSP, which means you can program some chips in-circuit without removing them from the target board. The GQ-4x4 is socket-only—every chip has to come out and go into the ZIF.
• High-speed parallel programming for larger flash and NAND parts. The T48's parallel mode handles modern high-density flash at speeds the GQ-4x4 either doesn't support or handles much more slowly.
• NAND flash and eMMC support (with appropriate socket adapters). Modern embedded boards increasingly use NAND or eMMC—the T48 covers them; the GQ-4x4 doesn't natively.
• More current device profile additions. XGECU adds new parts to the T48 device list with each XGecu Pro release, including recent-vintage SPI flash and newer microcontrollers. The GQ-4x4's device list is more static—the parts that were supported when you bought it are roughly the parts that'll be supported a year later.
• Hardware self-test routines. XGecu Pro can run diagnostic self-tests on the T48 to verify the programmer itself is healthy. The GQ-4x4 software doesn't have an equivalent built-in diagnostic.

What the GQ-4x4 does that the T48 doesn't:

This list is shorter and more situational. The GQ-4x4 isn't deprecated—it still does what it's always done well—but the unique-capability angle is narrower:

• Mature legacy support without profile quirks. Some older niche parts—certain pre-2010 PIC variants, certain obscure EEPROMs, certain mask-ROM-style parts—the GQ-4x4 supports cleanly with profiles that have been validated over years. The T48 supports many of the same parts, but its profiles for some legacy oddballs are newer and occasionally finicky.
• Willem-style programming adapter compatibility. The GQ-4x4 supports the Willem programmer adapter ecosystem—a community of socket adapters for parts that don't fit a standard 40-pin DIP. The T48 has its own adapter ecosystem, but the Willem adapters predate it and there's a lot of existing community gear built around them.
• No update treadmill. This isn't a capability the T48 lacks; it's a behavior the GQ-4x4 doesn't impose. As covered in the previous section, GQ-4x4 firmware and software updates are rare and non-disruptive. T48 updates ship more often and—at least in my experience—introduce driver issues often enough to merit declining them.

For retro-computing and arcade-board work specifically, the divergence between the two is smaller than the spec-sheet difference suggests. Both cover the 27Cxxx EPROM family, the 28Cxxx EEPROMs, and the common flash substitutes (W27C512, AT28C256, SST 39SFxxx). If your work is centered on those parts—which is most retro work—either programmer will handle it. The T48's broader device list pays off when you start touching modern boards, when you need ICSP for a soldered-in chip, or when you have to deal with NAND/eMMC. The GQ-4x4's narrower list pays off if you specifically value a programmer that won't change behavior between sessions or push updates you have to evaluate.

Read reliability—what the Cross-Validation Part 2 data showed

Both programmers were two of the five reading sources in the Cross-Validation Part 2 bench session. Here's what the data showed on the night, and what it doesn't claim.

The GQ-4x4 was tested heavily. Across the session: 28 sequential reads on 7 different chips (3 fresh M27C512 blanks burned that night, 4 already-burned reference chips from an earlier batch), under 2 different USB ports, with and without the inline USB digital tester in the path. 41 fc /b comparisons against the source file, against the EMP-20 readbacks, and against each other for self-consistency checks. Differences observed: zero.

The T48 was tested as the third independent USB-side reading source. Across the session: 8 single reads on 8 different chips (same blue and green specimens as the GQ-4x4 testing). 13 fc /b comparisons against the source file, against the EMP-20 readbacks, and against the GQ-4x4 readbacks. Differences observed: zero.

The summary across all five reading sources from the session:

What this does and doesn't tell us. Both programmers read every chip in the test batch bit-perfect, agreeing with the EMP-20s and with each other across the entire session. Neither misbehaved. That's a real result for both.

But it isn't a long-term reliability claim about either unit. Part 1 documented a real intermittent fault on the GQ-4x4—four chips out of twelve verified incorrectly during a bench session weeks earlier. The fault wasn't reproduced in Part 2, and Part 2 walked through why (rig variables shifted between the two sessions; intermittent faults move). The T48, on the other hand, wasn't on the bench during Part 1's session at all. I don't have a comparable intermittent-fault data point for it, either positive or negative. So I can't claim the T48 is "more reliable" than the GQ-4x4 in any honest way—I have one session where both behaved perfectly, and that's the entire dataset on the T48.

The workshop-honest read on reliability: both programmers work, both produce trustworthy reads when they work, and any single-session test is necessarily incomplete data for an intermittent failure mode. The Cross-Validation series exists precisely because single-programmer verify isn't enough evidence to ship chips on. The audit-trail discipline applies regardless of which programmer you're using.

If you're picking between the two on reliability alone, the honest answer is: I can't pick a winner from one session of data. What I can say is the GQ-4x4 has a documented intermittent failure history (Part 1) that I haven't been able to reproduce since, and the T48 has neither history nor reproducible failure—because it wasn't in the rig for Part 1. Treat both as trustworthy until your own audit trail says otherwise.

USB power and host behavior

Both programmers ran on the same USB cable swapped between them during Part 2—no power-supply differences to control for. The data from that session documents how each behaved under USB-side variations.

The GQ-4x4 USB power, measured at the programmer's input via the inline USB digital tester: 5.00V steady at idle, current draw averaging 0.038A. During read operations the current pulled up to 0.13A with voltage holding at 5.00V—no sag observed, no transients on the meter. Across the Part 2 USB variation matrix (left host port vs right host port, raw cable vs with the inline tester in the path) the readings stayed within the same range. The GQ-4x4 is not USB-power-sensitive on any rig I have to test it on.

The T48 USB power, reported by XGecu Pro: 4.99V stable, USB 2.0 high-speed mode at 480 MHz. I didn't run the T48 through the same deep USB variation matrix as the GQ-4x4—the T48 wasn't the Part 1 suspect, so the bench session put the variation effort on the unit that needed it. Within the rig configurations the T48 did see, behavior was identical: stable voltage, no observed issues.

Both units draw modest current from the host—well within USB 2.0 spec, no need for a powered hub on either, no current-stealing concerns even when another USB device is sharing the same controller. Both work on direct-to-host USB ports as well as through the inline tester's pass-through.

Buyer-relevance: USB power isn't typically a buying-decision factor between these two; both are well-behaved on a healthy USB port. The most relevant practical note is the cable—USB-B on both, so a single USB-A to USB-B cable serves either unit. If you're cable-managing a busy bench with multiple USB programmers, that interchangeability is a small quality-of-life win. If you're running one programmer at a time, it doesn't matter.

Speed—rough impressions

Both programmers complete a 64KB M27C512 burn in seconds; speed isn't a buying-decision factor for typical retro EPROM work. I haven't timed the two head-to-head with a stopwatch, so this section is workshop-feel rather than benchmark. Both are subjectively fast compared to the EMP-20 on the bench—a burn that takes the EMP-20 a minute or so finishes on either USB programmer in well under that.

Within the USB pair, the two feel comparable for the work I actually do. A burn-then-verify cycle on an M27C512 finishes fast enough that the difference between them—if it exists at all—isn't operationally meaningful in a session. I don't sit and watch a progress bar on either one wishing the other was faster.

Where the T48 should pull ahead is on parts where its high-speed parallel programming mode kicks in—NAND flash, larger SPI flash, modern parts the GQ-4x4 either doesn't support or handles in a slower fallback mode. I haven't done enough work in that part-density range to characterize the actual delta from personal use; if your workflow centers on modern higher-density flash, the published benchmarks favor the T48 substantially.

For 27Cxxx retro work specifically, both programmers finish a single chip in less time than it takes to fish the next chip out of the tube. Speed isn't a buying-decision factor at that workload.

If somebody wants the actual numbers head-to-head, the experiment is straightforward: pick a chip (say an M27C512), load the same source, burn + verify on each programmer back to back with a phone stopwatch. I'll capture it in a future Bench Notes post if the question keeps coming up.

Price—current market

The XGECU T48 runs $50–120 across configurations; the GQ-4x4 runs $130–200+. The T48 is meaningfully cheaper at every tier. Prices fluctuate—the numbers below are approximate as of mid-2026 based on listings from MCUmall directly, Amazon, AliExpress, and eBay. Check current retail before buying; sales and bundle configurations move these around regularly.

The XGECU T48 runs roughly $50–80 for the base programmer and $80–120 for the standard adapter-bundle kitsthat include socket adapters for common chip families (DIP-40 / PLCC / TSOP / SOIC). XGECU's own store sells the official version; AliExpress sellers run lower on price; eBay listings sit in between. The TL866-lineage pricing context matters here: the TL866II Plus used to sell in roughly the same range, and the T48 inherited that pricing position as the active product.

The GQ-4x4 runs roughly $130–180 for the standard "Light Pack" or "Full Pack" configurations from MCUmall directly, with adapter-included bundles climbing into the $200+ range. Amazon listings sit in the same range. The GQ-4x4 is meaningfully more expensive than the T48 across the board—roughly 2× the price at the base-programmer level, narrower margin once you start adding adapter kits because GQ-4x4 bundles tend to include more adapters in the box.

What you're paying the premium for, with the GQ-4x4: MCUmall is a Canadian operation with direct customer support, a longer-running product line (over fifteen years), and well-documented Willem-adapter compatibility. Some buyers value that combination over the T48's price-and-feature advantage. Other buyers don't.

What you're paying less for, with the T48: XGECU is a mainland-Chinese operation primarily distributed through AliExpress and resellers (the official Shopify store exists but isn't the high-volume channel). Direct customer support is less established, the update cadence is more aggressive (which can be a feature or a bug depending on your stability preference—see the software section earlier), and the brand recognition outside the technical community is lower.

Practical buying note: at the time of this writing, the T48 represents the more aggressive value play and the GQ-4x4 represents the more established-brand play. If price is decisive, the T48 wins handily; if you value a more conventional vendor relationship and a quieter update treadmill, the GQ-4x4 earns its premium.

How I actually use both on the same bench

Both programmers earn space in my workshop because they're not interchangeable from a workflow standpoint, even though they cover overlapping chip-family territory. Here's the actual division of labor.

EMP-20 #1 (the Rev. K) is the primary burn programmer for any batch of 27Cxxx parts that has to ship. Parallel-port, DOS-software, ugly, slow, and bulletproof. Every chip I ship through goes through this unit's burn cycle first.

EMP-20 #2 (the Rev. A→H upgrade) is the cross-verification programmer. After a chip burns cleanly on EMP-20 #1, I read it back on EMP-20 #2 and fc /b the two readbacks against the source file. Two units of different vintages agreeing is the empirical truth baseline per Cross-Validation Part 2's methodology.

The GQ-4x4 is the third independent reading source. After EMP-20 cross-verify confirms the chip is bit-perfect, the GQ reads it back. Different decade, different interface (USB vs parallel), different software—if the GQ disagrees with the EMP-20s, that's diagnostic data, and the bit-flip analysis methodology from Part 1 kicks in to figure out which programmer is lying.

The T48 is the fourth independent reading source plus the primary programmer for anything outside the 27Cxxx range. Modern SPI flash, NAND, eMMC, ICSP work on a target board—T48 territory. For 27Cxxx, it's a cross-check supplement; for modern parts, it's the primary tool.

The BackBit chip tester (designed by Evie Salomon) runs a chip-side checksum sanity check at the end of the chain. Different hardware from any USB programmer, different read path, different validation type—a fifth independent confirmation that doesn't share blind spots with the four programmers above it.

Why all five (or any subset of them) instead of one? Because the Cross-Validation series spent two posts establishing that single-programmer verify isn't enough. Intermittent faults move. The audit trail you capture on the day of the burn is the only evidence that survives the night. The more independent reading sources you have when you capture that trail, the harder it is for any single programmer's bad day to compromise a batch.

If I were starting over and could only afford two of the four programmers, the answer would be one EMP-20 plus one USB programmer. The legacy/modern pairing covers the most ground with the least overlap. Past that, the third and fourth programmer add diminishing marginal independence—useful for high-stakes batches, overkill for routine work.

Which one would I buy first if I were starting today

If I were starting an EPROM workflow from zero, with no existing programmer and a single-unit budget, I'd buy the XGECU T48 first.

Three reasons, in priority order:

1. Price. The T48 base is roughly half the cost of the GQ-4x4 base, and the value gap holds across bundle configurations. For somebody starting out, half-price matters—you can buy a T48 plus a used Needham EMP-20 from eBay for less than a GQ-4x4 base alone.
2. Device coverage. The T48 covers more parts overall, including modern flash and microcontroller families that may matter if your work extends beyond retro EPROM. Even if you're starting in retro, your work will probably drift into modern parts eventually; the T48 grows with you better.
3. Active development. XGECU adds device support and fixes issues across roughly monthly software releases. The GQ-4x4 has a more static product. If you're entering this space now, you want the programmer whose device list is still growing.

The single caveat against the T48 is the update treadmill—XGecu Pro updates ship frequently and have introduced driver issues in my experience. I decline them as a standing rule. If you'd rather not have to make that decision every quarter, the GQ-4x4 saves you from it. But that's a quality-of-life tradeoff, not a capability one.

The audit-trail methodology matters more than the programmer choice. Whichever one you start with, the fc /b cross-validation discipline does most of the actual work. A T48 used carelessly produces the same risk as a GQ-4x4 used carelessly. A two-programmer cross-verify setup using a T48 plus a $50 used EMP-20 from eBay covers more ground than a single GQ-4x4 used as the only reading source. That's the buying decision that actually moves the needle.

If you already own a GQ-4x4, don't sell it to buy a T48. The cross-validation use case argues for keeping both, the same way it argues for two EMP-20s on a serious bench. The two USB programmers earn separate space precisely becausethey cover overlapping but not identical ground and provide an independent reading path against each other.

Frequently asked—GQ-4x4 vs XGECU T48

Is the XGECU T48 the same as the TL866? No, but it's the successor. The TL866 (in its TL866CS, TL866A, and TL866II Plus revisions) was XGECU's previous USB programmer line and the de facto budget programmer of the 2010s. XGECU stopped manufacturing the TL866 family when the T48 launched; the T48 is now their active product. XGecu Pro software covers both the T48 and the older TL866 line. If you see "GQ-4x4 vs TL866" in older reviews, those comparisons still apply directionally to the T48—it's the same product family, modernized.

Can I run XGecu Pro on the GQ-4x4 (or the GQ software on the T48)? No. Each programmer has its own proprietary software and they're not interchangeable. The GQ-4x4 runs the MCUmall GQ app; the T48 runs XGecu Pro. There's no shared driver or compatibility layer between them.

Do I need both? No. One USB programmer plus a cross-validation source (a second programmer, even a cheap used one) is enough for most workflows. The reason I keep both is the audit-trail use case described in the Cross-Validation series—independent reading paths catch failure modes that single-programmer verify can miss. If you're shipping chips into hardware you can't easily revisit, the redundancy is worth it. If you're burning chips for your own bench projects, one programmer plus the fc /b audit-trail discipline is plenty.

What about the EMP-20—should I add that to the rig? Only if you're handling pre-2001 retro chips and want a programmer designed in their era. The Needham EMP-20 is a legacy parallel-port programmer that's still excellent for 27Cxxx work but adds DOS/parallel-port infrastructure to your bench. For modern EPROM work in the 27Cxxx range, a T48 + GQ-4x4 pair covers it without the legacy overhead. If you're going deep into arcade-board restoration or chip-level vintage repair, an EMP-20 (used, on eBay) earns its place as the cross-verify partner to a modern USB programmer—and the second-EMP-20 angle from Cross-Validation Part 2 shows why having two of them on the bench unlocks methodological gains a USB programmer alone can't.

That's the GQ-4x4 vs XGECU T48 head-to-head, drawing on the Cross-Validation series bench data. The printable EPROM Cross-Validation Reference Card—the workflow companion to the series—applies regardless of which programmer you pick.
